"How are HUBER manhole covers SD7 (for pedestrian and\/or vehicle traffic) designed?"

" \t \t\t \t\t\t \t\t\tHUBER Manhole Covers SD7 are basically designed... \t\t\t...for a clear width up to and including 1000 mm and certified to: \t\t\t \t\t\t\tDIN 1229 \/ DIN EN 124-1:2015-09 and DIN EN 124- 3:2015-09 in the classes A15, B125, D400, E600 with test certificate and external inspection. \t\t\t \t\t\t...for a clear width bigger than 1000 mm and statically calculated according to: \t\t\t \t\t\t\tDIN EN 1991:2010-12 (Eurocode 1) and DIN EN 1993:2010-12 (Eurocode 3), class EC10 (comparable with class A) and EC100 (comparable with class D). \t\t\t \t\t\t \t\t \t "

"What do the DIN EN 124 load classes for SD7 manhole covers mean?"

"Manhole covers according to DIN EN 124 are tops and covers for use in vehicular and pedestrian areas. They are classified according to different load classes. HUBER offers covers in the following sizes:\r\n \tA 15 for traffic areas that can only be used by pedestrians and cyclists (test load 15 kN). \tB 125 for footpaths, pedestrian zones and comparable areas, car parking areas and car parking decks (test load 125 kN). \tD 400 for carriageways of roads (including pedestrian streets), shoulders of roads and parking areas approved for any sort of road vehicles (test load 400 kN). \tE 600 for surfaces that are driven over with high wheel loads, e.g. dock facilities, aircraft operation areas (test load 600 kN). "

Attack-proof and weatherproof manhole cover SD7, for flush fitting, load bearing, security tested, rectangular type

Q: "What does surface-watertight mean?"

"The term \"surface-watertight\u201d means that the manhole cover is protected against the ingress of natural precipitation such as rain or other surface water that occurs without pressure."

Manhole cover, installed flush with the surface for pedestrian and/or vehicle traffic, optionally in class A15 or B125 or D400 or E600.

Weatherproof, odor-tight against pressureless water, attack-proof, rectangular in shape, made of 1.4307 (AISI 304 L) stainless steel.

The cover is made of a stainless steel tear pattern plate with additional bracing on the underside, tailored to the weight and load class. It provides slip resistance in compliance with DIN EN 124-1:2015-09 and features a low-wear seal on the underside. The cover includes a screw lock and a lock system with anti-drilling protection, featuring a standard hardened safety lock as recommended by criminal investigation departments and aligned with normative standards. The profile cylinder, conforming to DIN 18252, must be supplied by the customer.

The cover is equipped with frost-proof inner hinges and opening assistance provided by stainless steel gas-assisted spring dampers. It includes an integrated cover arrestor that can only be manually released. Additionally, a connection for potential equalization is provided.

Easy-to-install encasing frame, standard height 9.8 in. / 250 mm, with external wall clamps, provided for embedding in concrete (concrete up to upper frame edge) and for mounting to the casing. Manhole cover and frame shielded arc-welded, acid-treated in a pickling bath and passivated. Operating key included.

Attack-proof and weatherproof HUBER manhole cover SD7, for flush fitting, load bearing, security tested, rectangular type

HUBER Manhole cover SD7, for flush fitting, load bearing and attack-proof / security tested

HUBER Manhole cover SD7, for flush fitting, load bearing, attack-proof / security tested, weather-proof, rectangular type

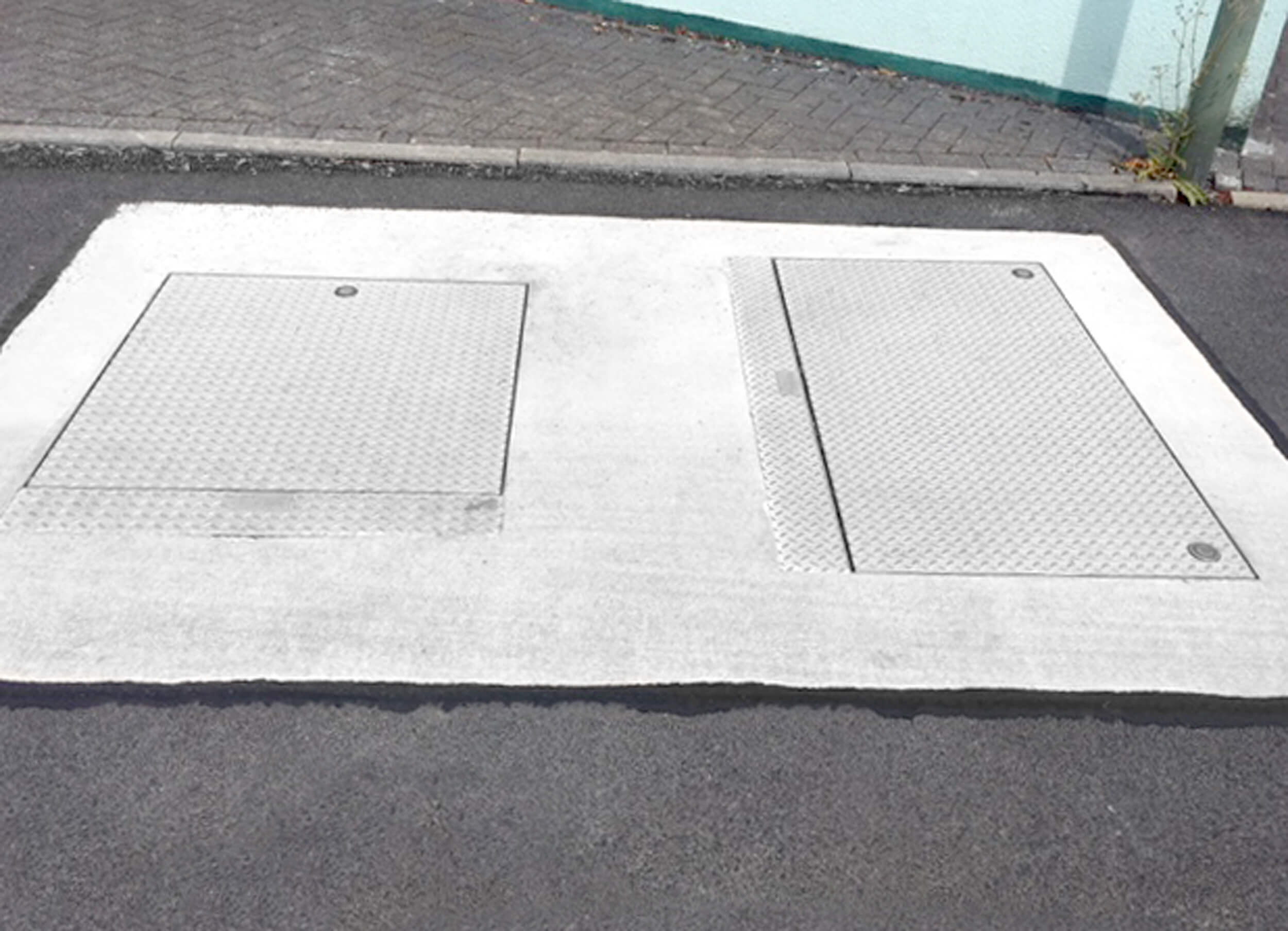

HUBER manhole covers SD7

HUBER manhole cover SD7 with shaft barrier

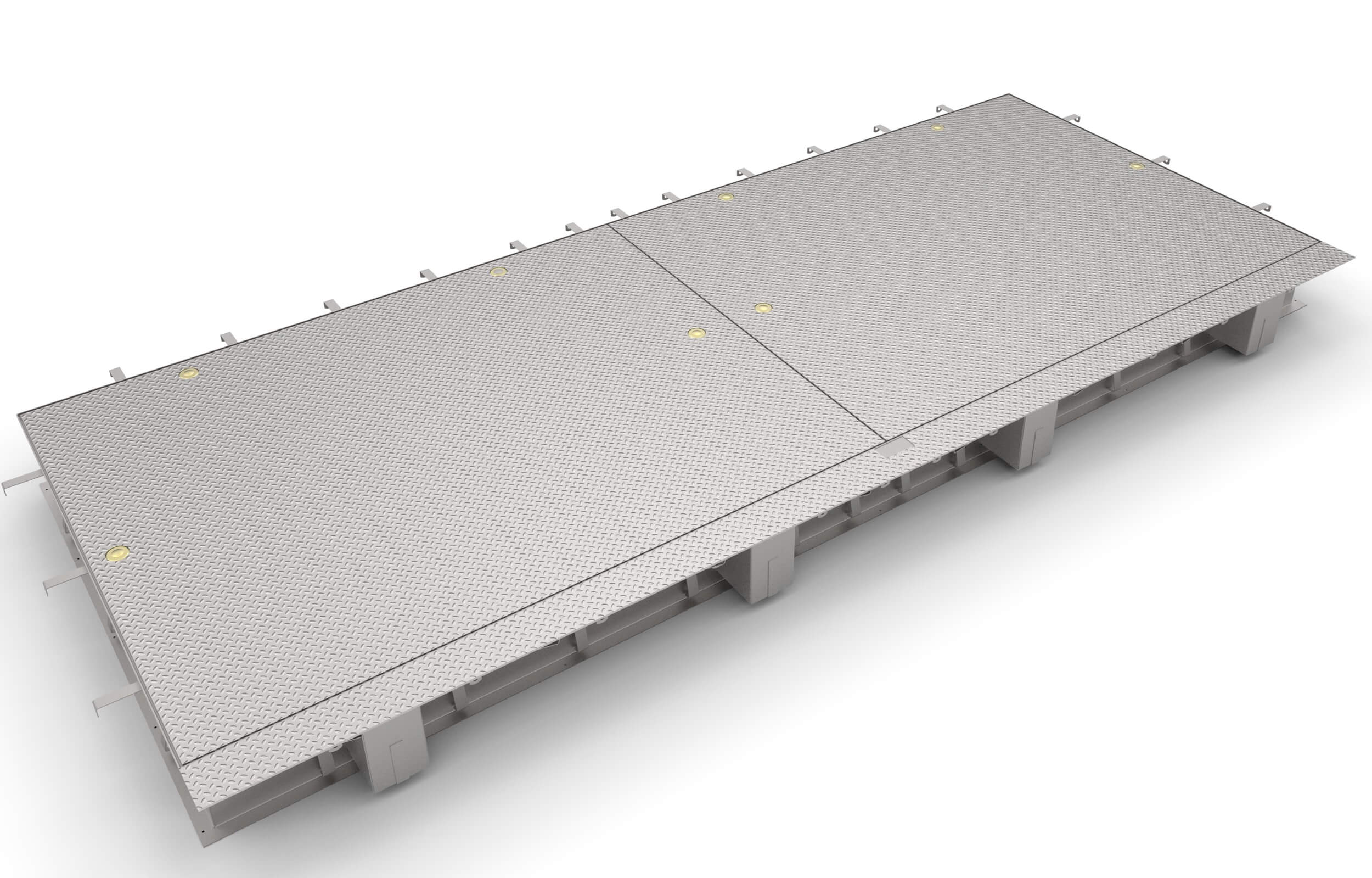

HUBER manhole cover SD7, multipart design

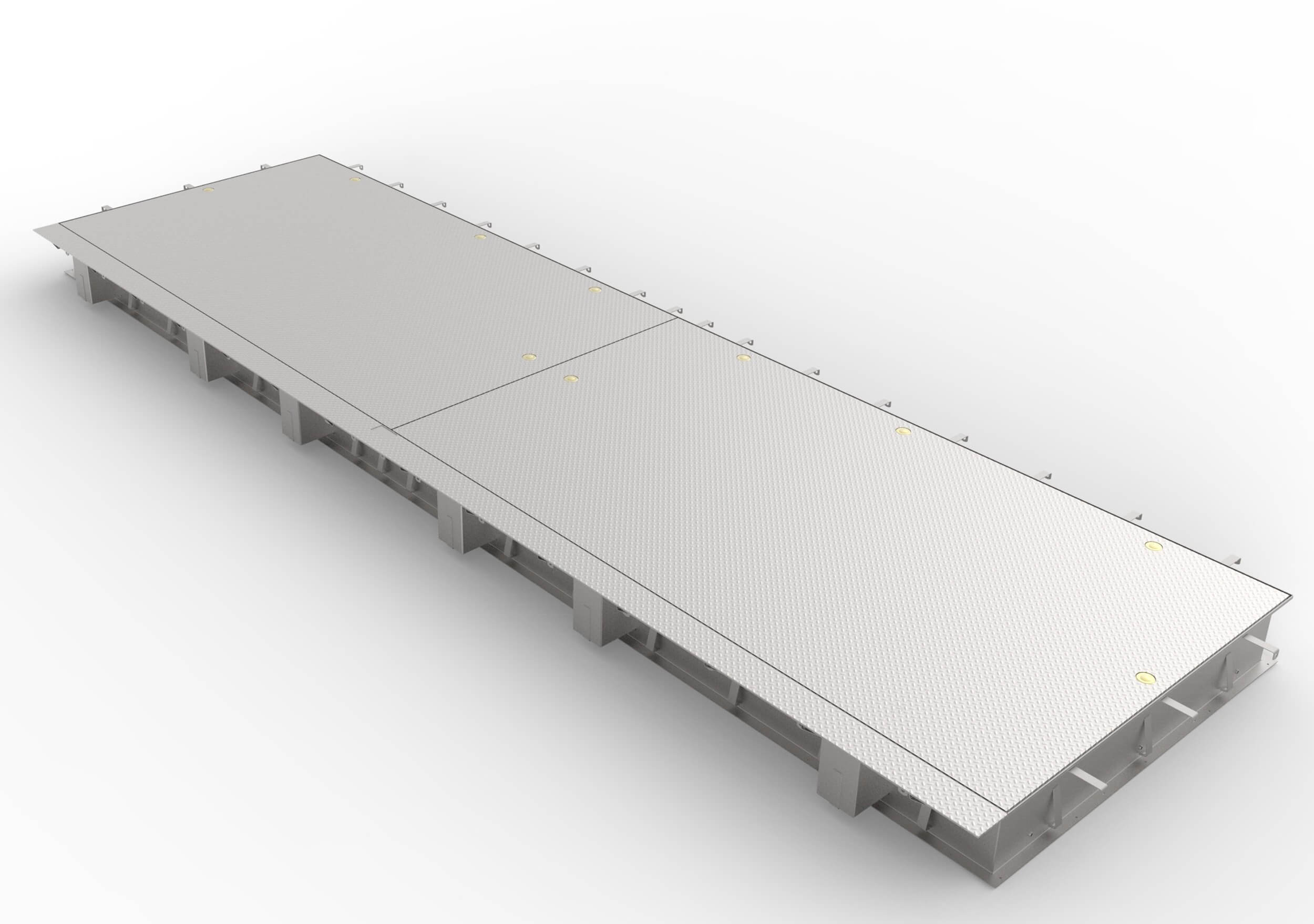

HUBER manhole cover SD7, class D400

1/6

Designed for

The cover is designed to prevent forced access and is certified according to DIN EN 1627 to resistance class RC3 in class D400 or resistance class RC4 according to DIN EN 1627 in class B125, D400, E600. It meets the requirements of DVGW W 1050 for object protection in water supply structures and is suitable for use in Ex zone 1. However, it is not suitable for high-volume traffic applications (refer to the definition provided in the Download section).

Designed for a clear width up to and including 39.3 in. / 1000 mm, the cover is certified to meet stringent security and performance standards including:
DIN 1229 / DIN EN 124-1:2015-09 and DIN EN 124-3:2015-09, classes A15, B125, D400, E600 with test certificate and external monitoring.

Designed for a clear width bigger than 39.3 in / 1000 mm and statically calculated according to:
DIN EN 1991:2010-12 (Eurocode 1) and DIN EN 1993:2010-12 (Eurocode 3), class EC10 (comparable with class A) and EC100 (comparable with class D).

Options

1.4404 (AISI 316 L) stainless steel
Lift-off cover (without spring dampers and hinges)
Non-standard sizes
Encasing frame, non-standard installation height
Designed for dowelling (only possible for class A15)
The cover is designed with the option to be opened from below, with consideration given to the traffic situation to ensure safety and compliance with operational requirements
Suitable for high-volume traffic up to a maximum surface of 10.7 sq. ft. / 1 m² and maximum side length of 4,593 ft. / 1400 mm (no emergency exit possible). (See definition for high-volume traffic below in the Download section)

Magnetic contact
Cover insulation
One-part covers watertight up to 16 ft. / 5 m WC (class D400 only)
One-part covers back-water proof up to 16 ft. / 5 m WC (class D400 only)
Cover designed as a shell suitable to be filled with mastic asphalt
Safety guard / barrier
Safety guard / anti-fall guard
Multi-part cover

Downloads

Customer Information and Documents

Datasheet: Manhole cover SD7, for flush fitting Datasheet: Manhole cover SD7, resistance class RC4 Complete planning documents package for flush fitting manhole cover SD7 Complete planning documents package for Manhole Cover SD7, resistance class RC4 HUBER definition „stationary traffic“-„moving traffic“ Flyer: Security for your infrastructure - Protect facilities and plants against unauthorised access Flyer: Protect your infrastructure from flooding and other weather extremes

More information needed?

Feel free to contact us

FAQ

Frequently Asked Questions

HUBER Manhole Covers SD7 are basically designed...

...for a clear width up to and including 1000 mm and certified to:

DIN 1229 / DIN EN 124-1:2015-09 and DIN EN 124- 3:2015-09 in the classes A15, B125, D400, E600 with test certificate and external inspection.

...for a clear width bigger than 1000 mm and statically calculated according to:

DIN EN 1991:2010-12 (Eurocode 1) and DIN EN 1993:2010-12 (Eurocode 3), class EC10 (comparable with class A) and EC100 (comparable with class D).

Manhole covers according to DIN EN 124 are tops and covers for use in vehicular and pedestrian areas. They are classified according to different load classes. HUBER offers covers in the following sizes:

A 15 for traffic areas that can only be used by pedestrians and cyclists (test load 15 kN).
B 125 for footpaths, pedestrian zones and comparable areas, car parking areas and car parking decks (test load 125 kN).
D 400 for carriageways of roads (including pedestrian streets), shoulders of roads and parking areas approved for any sort of road vehicles (test load 400 kN).
E 600 for surfaces that are driven over with high wheel loads, e.g. dock facilities, aircraft operation areas (test load 600 kN).

The term "surface-watertight” means that the manhole cover is protected against the ingress of natural precipitation such as rain or other surface water that occurs without pressure.
