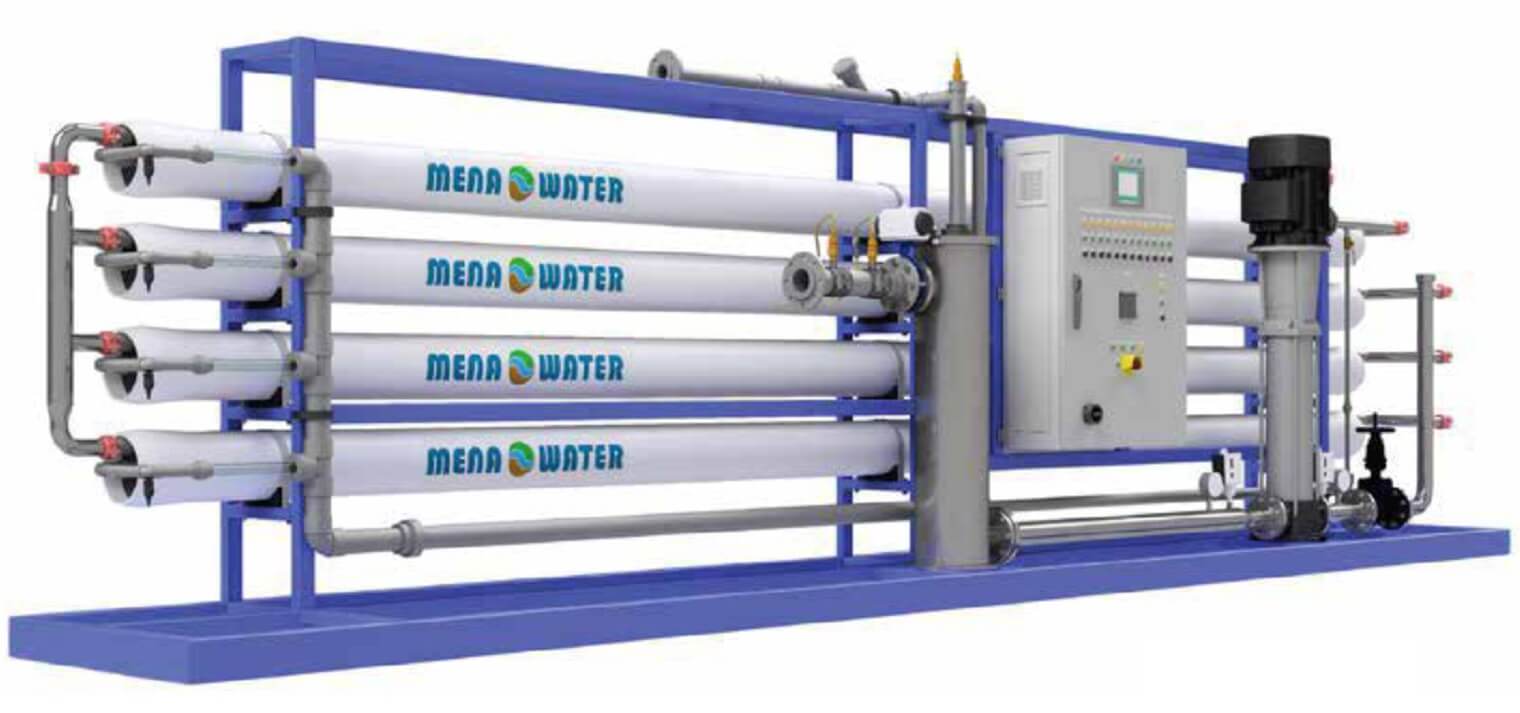

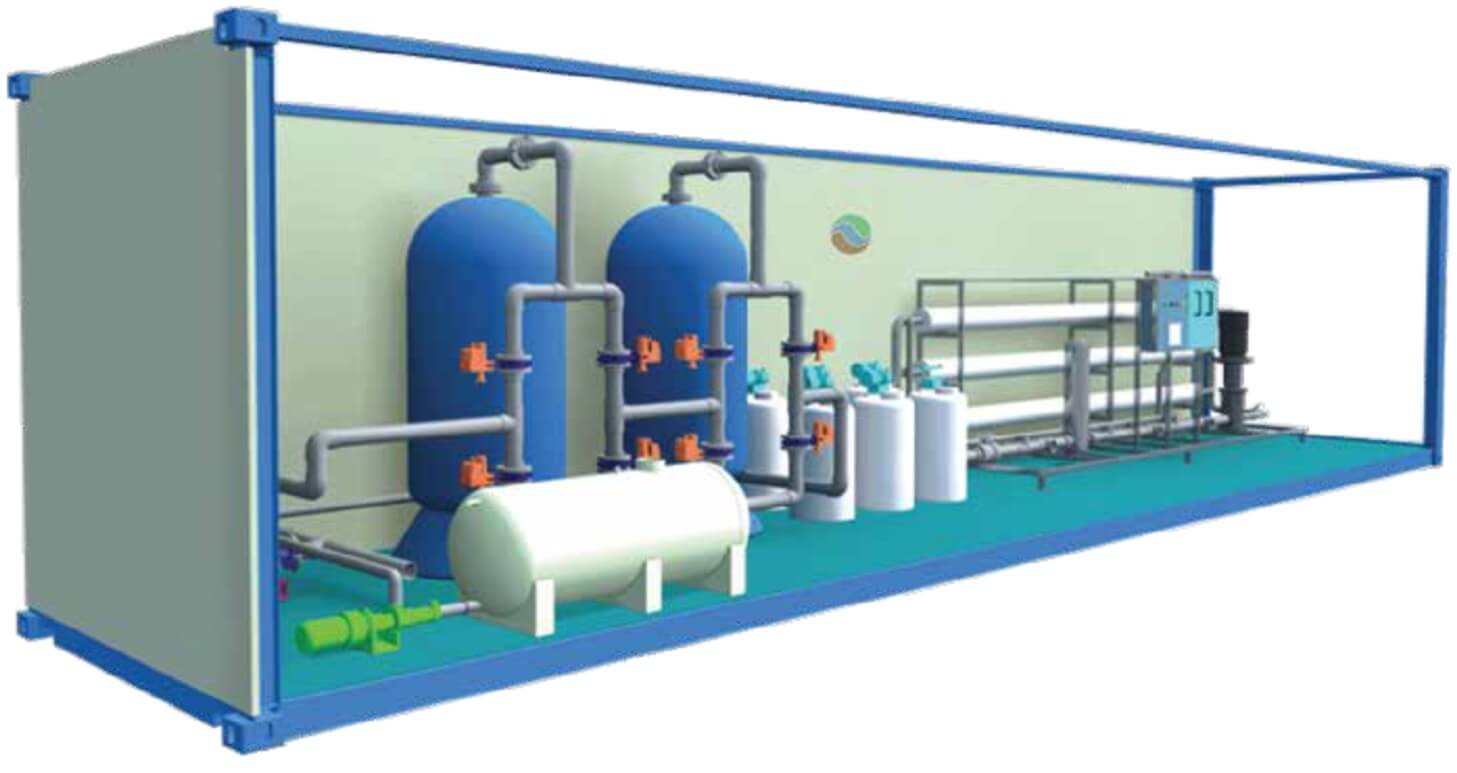

MENA-Water Reverse Osmosis Containerized Units Containerized or skid mounted Reverse Osmosis systems
Available as containerized or skid mounted plants, Reverse Osmosis Systems are capable of removing dissolved salts and other impurities such as bacteria, sugars, proteins, dyes viruses, and harmful constituents that provides pure potable water and process water, free of toxins, and other contaminants with large molecular weight.
Designed, Engineered, pre-assembled, factory tested with engineering and quality standards, to provide easy and quick shipping, installation in small foot print area and limited site installation work to save your money and time.
Design and Function
Our system is suitable to purify and treat seawater, high brackish, and even industrial or municipal water when treated with the Membrane Bioreactor (MBR), external Ultra-filtration, or Nano-Filtration as Pre-Treatment prior to the Reverse Osmosis (RO).
Optional Features
- Double pass plants for lower permeate TDS
- Higher recovery plants
- SS Frame
- TDS monitoring/controller on feed line
- Clean-in place (CIP)
- Additional pre-treatment
- Supply with 60Hz possible
- Ozonation system/UV sterilizers
- Post de ionizer (DI) polishers
- PLC control panel with HMI touch screen controls
- Assembled in an ISO standard shipping container
- Remote monitoring
Operation Specifications
- Feed turbidity <1 NTU
- Feed SDI : 3-5
- Free oxidant content
- Iron tolerance < 0.05 ppm
- Operate at higher TDS by lowering recovery
- Nominal salt rejection up to 99.8 %
- Max. feed water temperature: 107° F / 42°C
- Water with hardness exceeding 1 grain per gallon requires either a water softener or the use of an antiscalant to prevent scale buildup and ensure proper system performance
Fields of Application
Reverse Osmosis in combination with MBR ultra-filtration is the ideal solution for water recycling in many industries.
When wastewater is treated with a Membrane Bioreactor (MBR), it becomes suitable (SDI < 3) for subsequent treatment by a Reverse Osmosis (RO) system. This combination produces high-quality recycled water, reducing both freshwater consumption and disposal costs. With this pre-treatment, our systems are capable of purifying and treating seawater, high brackish, brackish, as well as industrial or municipal water.
Applications:
- Drinking Water
- Industrial Applications
- Industrial Eluent Recycling
- Medical (Kidney Dialysis)
Benefits of the MENA-Water Reverse Osmosis Units
