The term "surface-watertight” means that the manhole cover is protected against the ingress of natural precipitation such as rain or other surface water that occurs without pressure.
Watertight manhole cover SD5, rectangular type
Manhole cover, watertight up to 1 m head of water, rectangular in shape, completely made of 1.4307 (AISI 304 L) stainless steel.
In accordance with DIN 1239:2018-4, suitable for use in Ex zone 1.
The cover is made of stainless steel plate, with a centrally raised profile, robust external hinges, stainless steel gas assisted spring damper, integrated arrestor which can only be undone by hand, handle, circumferential rubber seal (frost-proof and weather-resistant) fixed in a slot, central lock and protective hood of brass, which can only be opened with a special key.
A connection for potential equalisation is provided.
The frame consists of an angle section for bolted fixing, with two internal lift locks.
Manhole cover and frame shielded arc-welded, acid-treated in a pickling bath and passivated.
Fixing material, gasket strip and operating key included.
Watertight HUBER manhole cover SD5, rectangular type

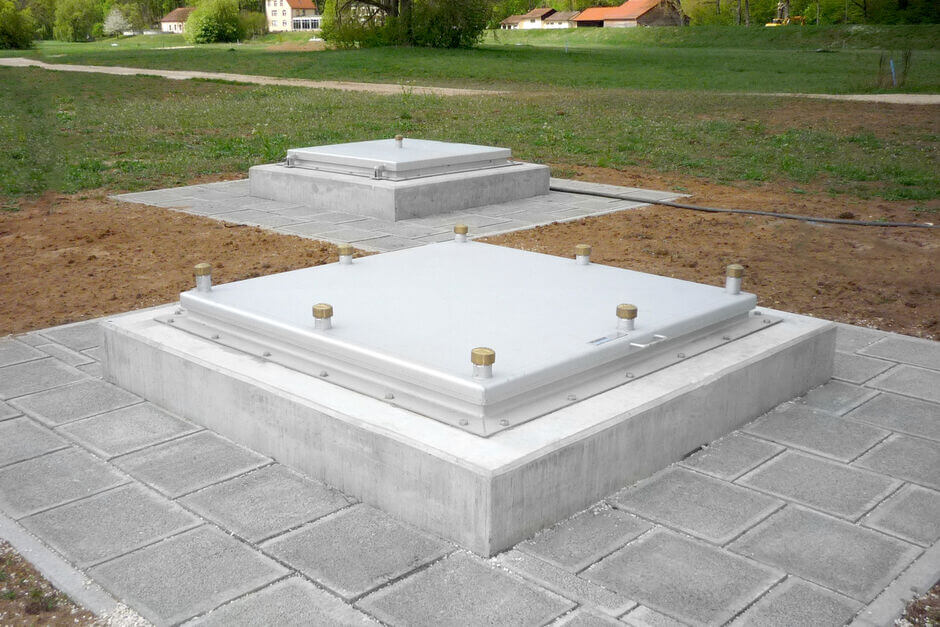

HUBER manhole cover SD5, multiple screwed

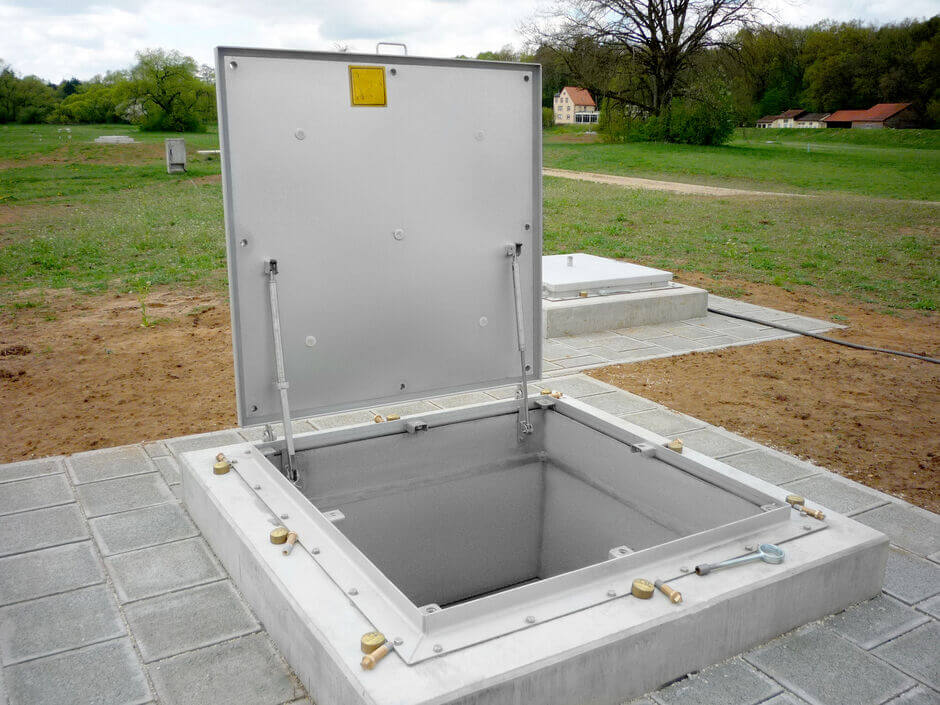

Insulated HUBER manhole cover SD5, opened
HUBER manhole cover SD5, watertight to 5m water column

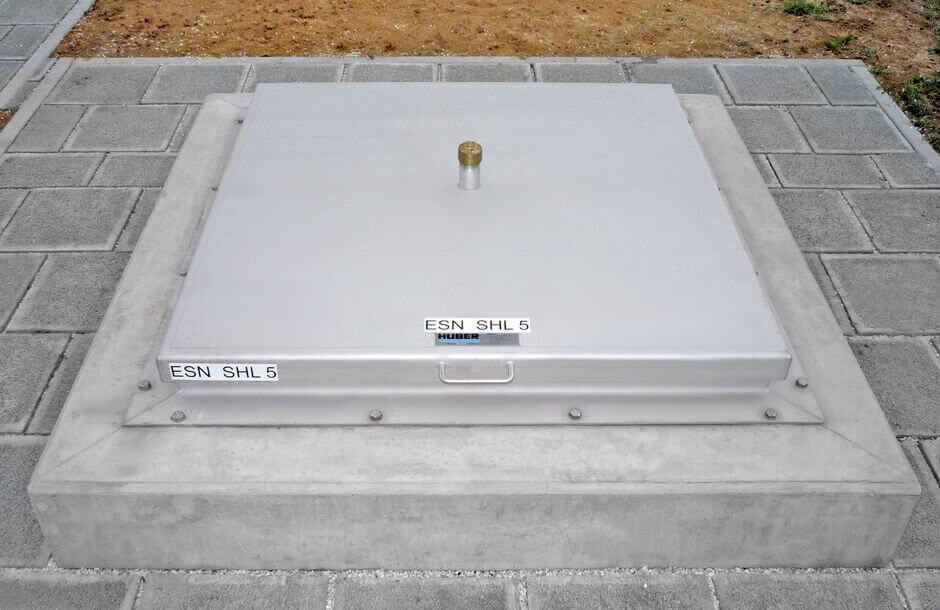

HUBER manhole cover SD5 with central lock
Options
- 1.4404 (AISI 316 L) stainless steel
- Insulation of the cover, without FCKW
- Safety lock for increased security, with or without profile cylinder
- Non-standard sizes
- Magnetic contact
- Flood-proof up to 5 m head of water, with multiple screw connection (clear opening dimensions to be taken into account)
- Application in plants in contact with ozone, 1.4404 stainless steel, with silicone seal, without gas pressure spring
- Back-up proof up to 0.5 bar, with multiple screw connection (clear opening dimensions to be taken into account)
- Unscrewable air vent with X-piece to seal the vapour hood opening in case of danger of flood water
- Safety guard / barrier
- Safety guard / antifall guard
