Manhole cover, lift-off design, for flush fitting, weather-proof, rectangular type, load-bearing up to 500 kg/m², made of 1.4307 (AISI 304 L) stainless steel.
The cover consists of a stainless steel tear pattern plate,
with additional bracing on the bottom according to static requirements, certified slip resistance – grip coefficient USRV 54, with a low-wear seal on the cover bottom side, lockable with hexagon screws.
Frame made from U-profile, installation dimensions 60 x 60mm, provided for installation in an existing rabbet. Manhole cover and frame shielded arc-welded, acid-treated in a pickling bath and passivated.
Operating key included.

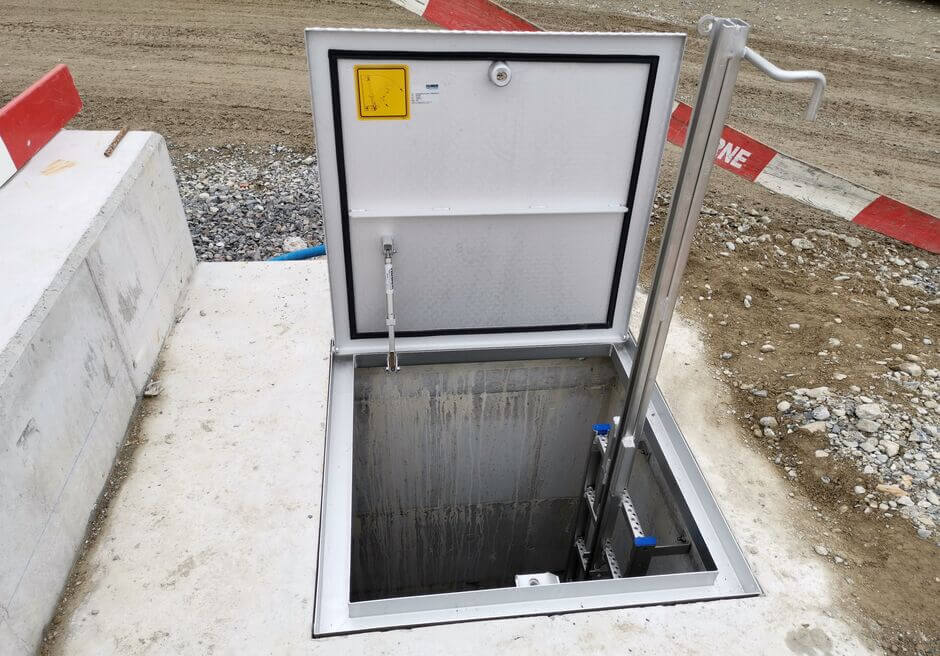

HUBER manhole cover SD11 for flush fitting, lightweight design

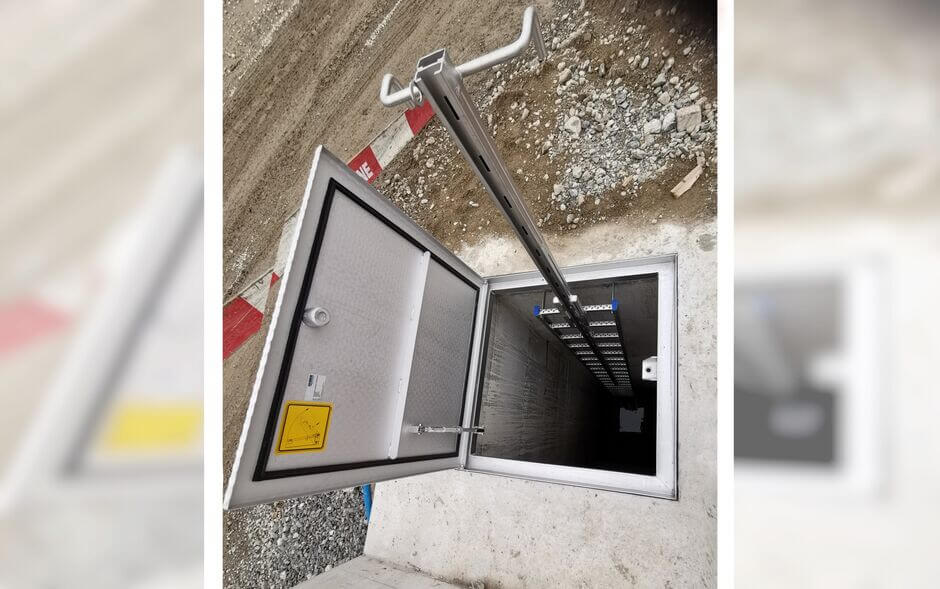

HUBER manhole cover SD11 with safety access ladder and guard rail

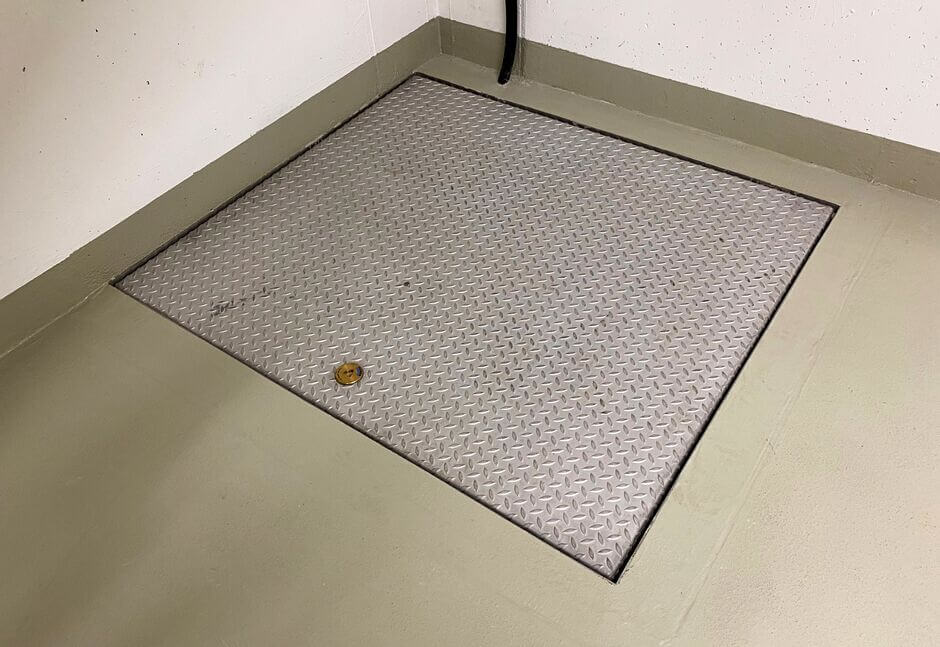

HUBER manhole cover SD11 in a building

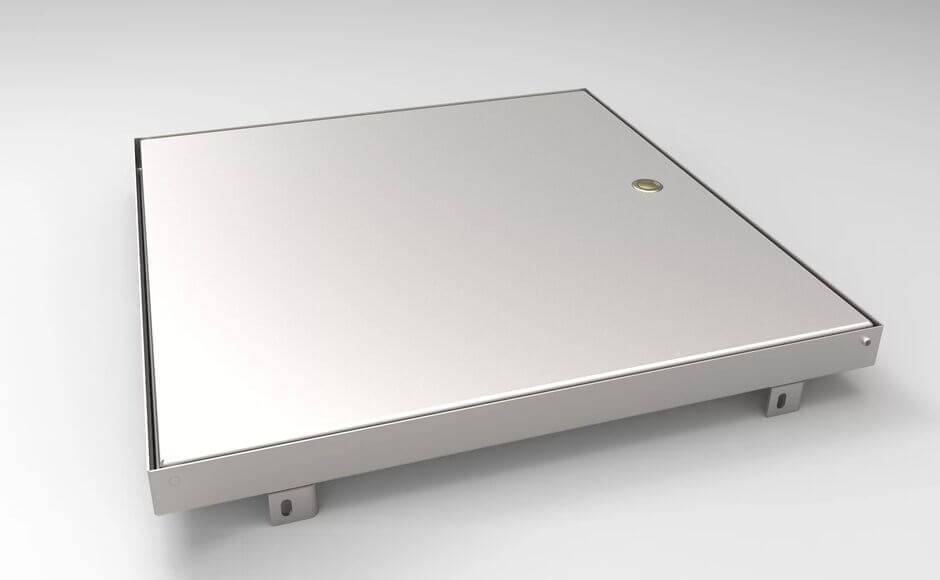

HUBER manhole cover SD11, exposed detail view
Options
- 1.4404 (AISI 316 L) stainless steel
- With hinges, stainless steel gas-assisted spring dampers and integrated arrestor which can only be undone by hand
- For installation into a manhole neck
- Fixing material and foam rubber gasket
- Magnetic contact (cover open/shut indicator)
- Safety guard / barrier
- Safety guard / antifall guard
- Multi-part cover
