HUBER Grab Screen TrashLift Cable operated coarse screen

Function
Benefits
Media
Downloads
FAQ
Case Studies
Related

Cable operated coarse screen for reliable removal of bulky material:

  • Protection of pumping station
  • Seawater intake
  • Surface water intake
  • Sewage treatment plants

Screen sizes:

  • Screen width: up to 4 m. Wider on request.
  • Discharge height above channel floor: up to 30 m. Deeper on request.
  • Bar spacings: ≥ 20 mm
  • Installation angle: 70-90°
HUBER Grab Screen TrashLift
HUBER Grab Screen TrashLift

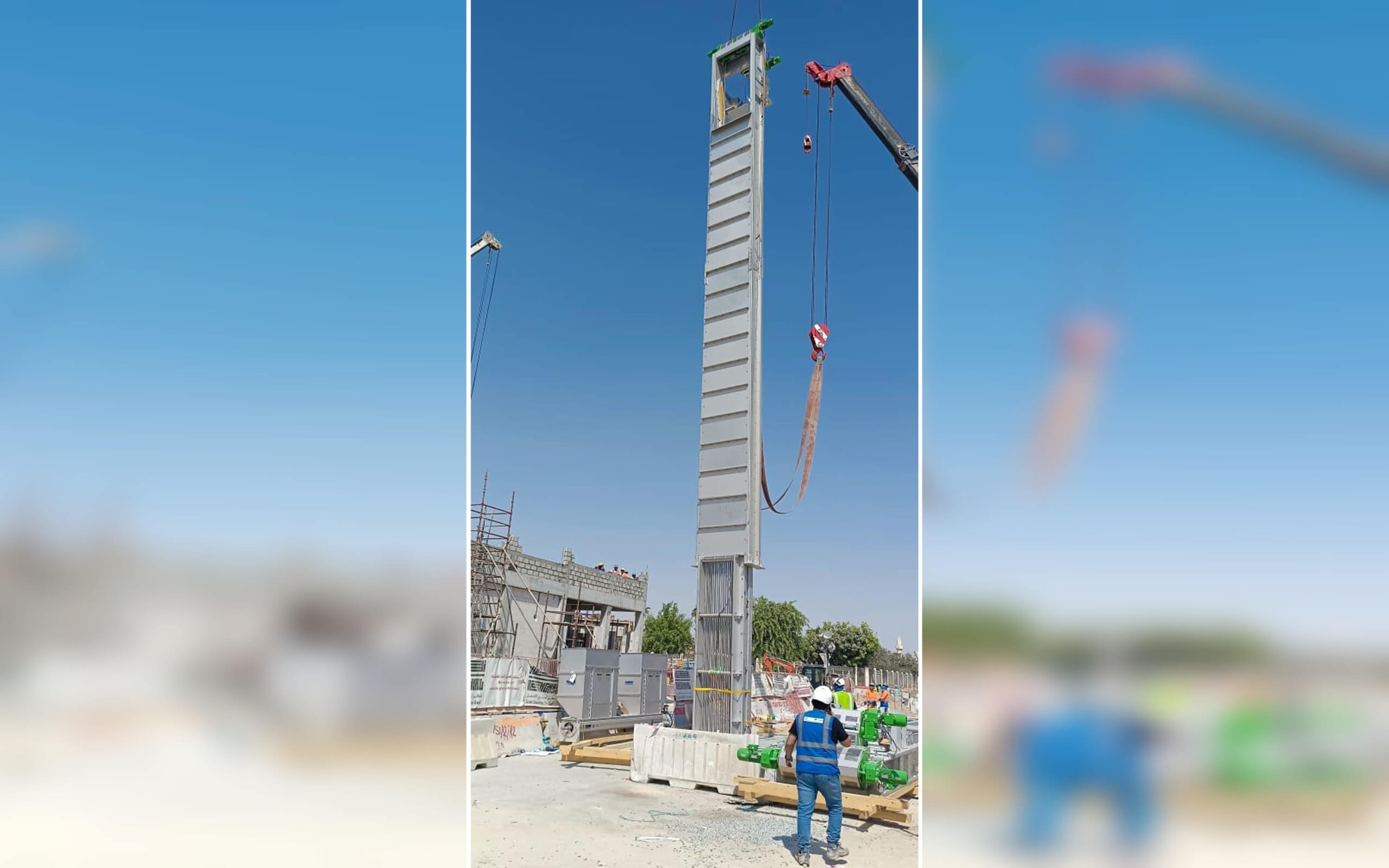

Impressive height: HUBER Grab Screen TrashLift
Impressive height: HUBER Grab Screen TrashLift

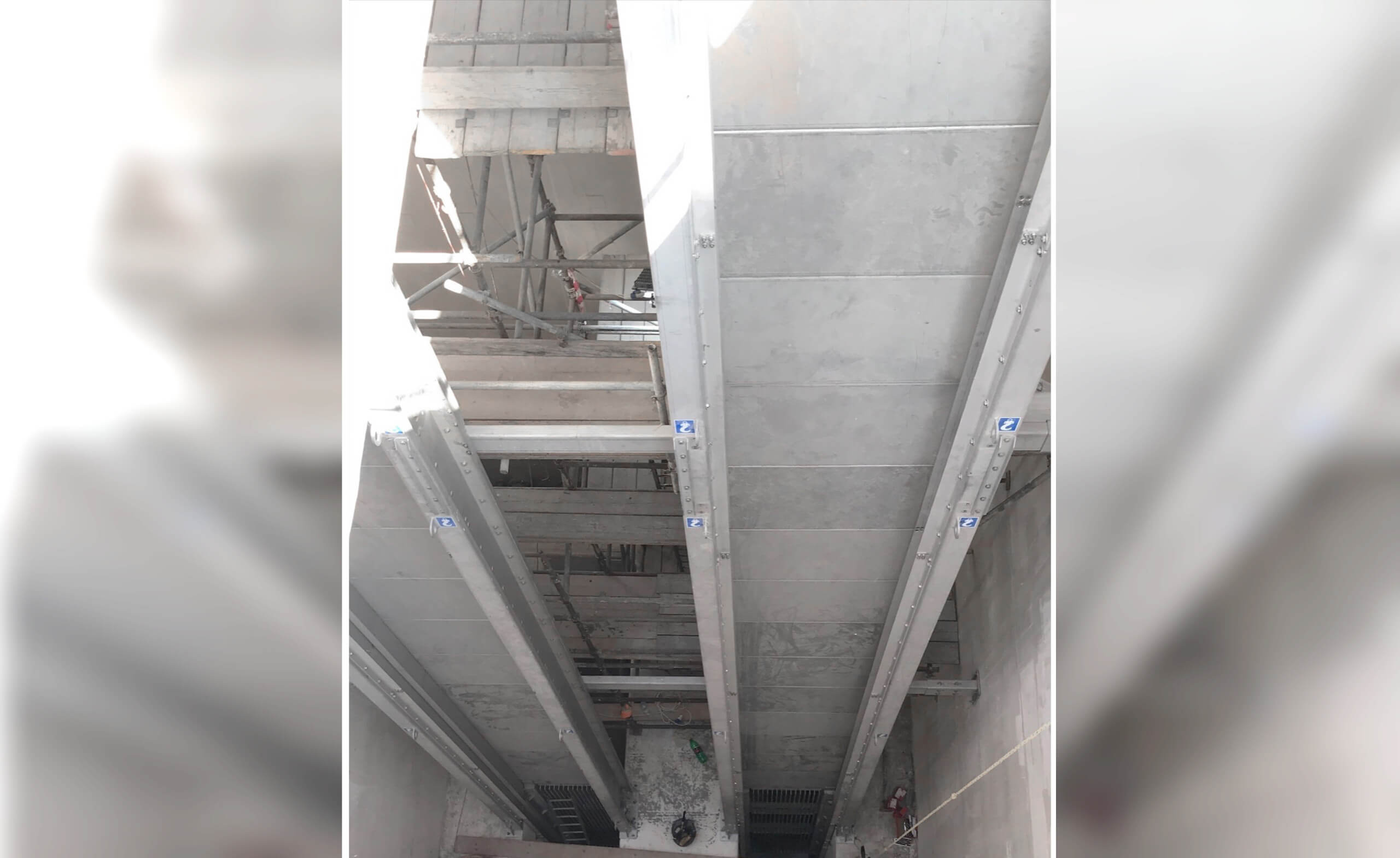

HUBER Grab Screen TrashLift for deep channels.
1/3
Design sketch: Functional principal
Design sketch: Functional principal

Design and Function

Design sketch: Functional principal
Design sketch: Functional principal

The HUBER Grab Screen Trashlift can be easily retrofitted into existing channels, even an installation without channel recesses is possible.

Waste water is screend via a coarse bar screen /trash rack with the collected screenings being removed by a hoisted grab cleaner with with high operating reliability.

The HUBER Grab Screen Trashlift is operated in a cyclical operation mode with the grab cleaner being mounted to two load ropes and one grabcontrol rope hoisted by a three winch system. Opening and closing of the grab cleaner is achieved by an independent winch.

For an optimum discharge of the collected screenings a scraper automatically discharges the screenings and cleans out the grab cleaner.

The benefits of the HUBER Grab Screen TrashLift

  • Reliable removal of bulky material with high operating reliability
  • Easy to retrofit into existing channels
  • Installation without channel recesses possible
  • High capacity grab with replacable rake teeth
  • Two speed control of grab cleaner: Maximize screenings discharge capacity
  • Optimum cable routing: Maximize cable lifetime
  • Scraper and traversing grab at discharge position: Optimum screenings discharge

Media

Videos and Animations

Animation: HUBER Grab Screen TrashLift

Animation: HUBER Grab Screen TrashLift

Functional principle of the sturdy, cable operated coarse screen for protection of pumping stations, water intake and sewage treatment plants

Downloads

Customer Information and Documents

Brochure: HUBER Grab Screen TrashLift

More information needed?

Feel free to contacts us
Feel free to contact us

FAQ

Frequently Asked Questions

Machines with a steep installation angle are best suited for such applications.

This screen installation option allows the installation space to be very compact, especially in the direction of flow.

Typical examples are our HUBER Multi-Rake Bar Screens RakeMax® and RakeMax® CF as well as the HUBER Belt Screen EscaMax®, HUBER Coarse Screen TrashMax® and HUBER Grab Screen TrashLift.
