HUBER Band Screen CenterMax® Maximum separation efficiency through reliable wastewater screening, retention of fibres and hair.
Maximum separation efficiency through reliable screening
- Maximum retention of fibres and hair
- Operating reliability for membrane bioreactors
- Especially for narrow channels and high throughputs
- High separation efficiency
The HUBER Band Screen CenterMax® is available in different designs and suitable for numerous applications of solids-liquid separation.
The screen can be equipped with a mesh, perforated plate or a folded perforated plate ("Star" design), according to the specific application requirements.

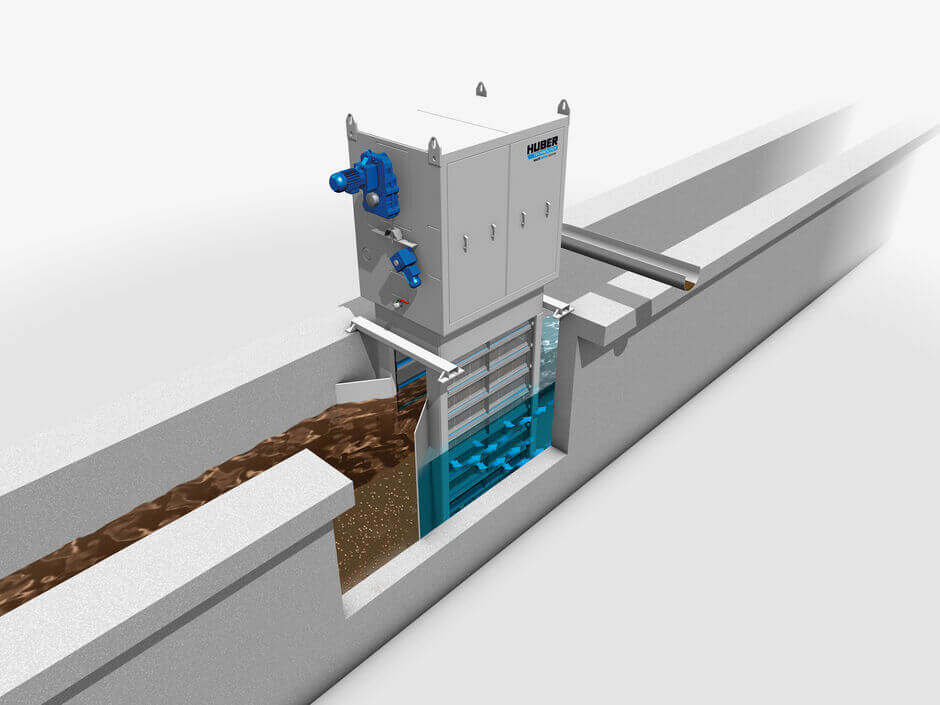

Design and Function
Whilst the wastewater flows into the open front side of the screen and out through the screening elements on the left and right side (viewed in flow direction), solids are retained on the inner surface of the screening elements leading to gradual blinding of the surface, which has an impact on the level difference in the channel. Cleaning of the filter elements starts at a defined water level in the channel upstream of the screen. The filter elements start to circulate, thus transporting the screenings upwards and out of the channel.
In the upper part of the screen a spray nozzle bar sprays water onto the surface of the filter element from outside to remove the solids from the surface and flush them into an internal trough installed in the upper part of the screen from where the screenings are discharged by gravity. The screenings are usually treated further in a HUBER Wash Press WAP® (see separate brochure).
Technical data
- 4 sizes (chamber openings)
- Width of filter elements: 600 ‒ 2400 mm
- Maximum screen length: 10,000 mm (longer lengths available on request)
- Perforated plate: 1 ‒ 10 mm
- Star-type perforated plate: 1 ‒ 2 mm
- Mesh: 0.5 ‒ 1 mm
- Completely made of stainless steel, pickled in an acid bath
Model variations

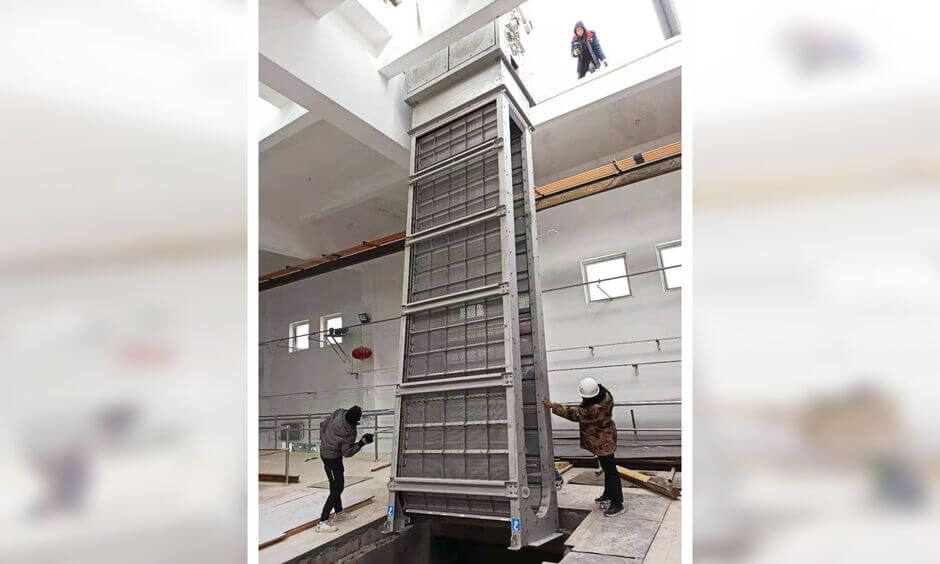

CenterMax® pp - perforated plate screen
HUBER Band Screen CenterMax® with perforated plate, perforations from 1 to 10 mm.
High separation efficiency and retention of fibres and hair.
Typical applications for 1 and 2 mm perforation:
- Protection of hollow-fibre membrane filtration plants
Typical applications for 3 mm perforation:
- Protection of plate membrane filtration plants

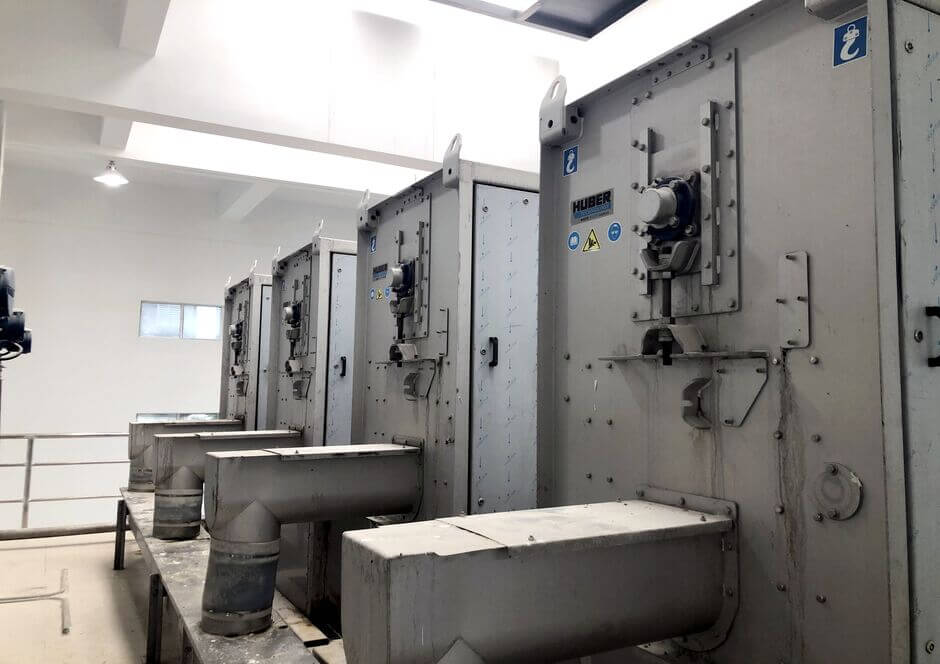

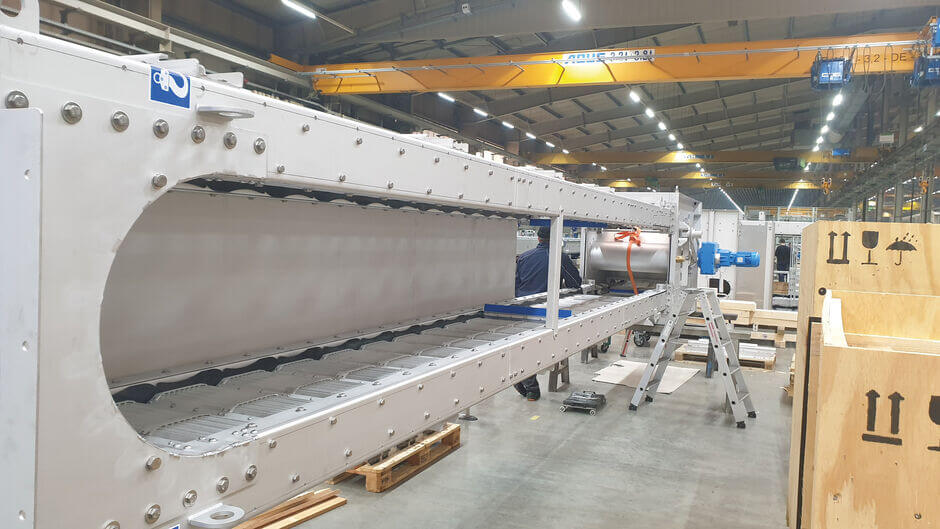

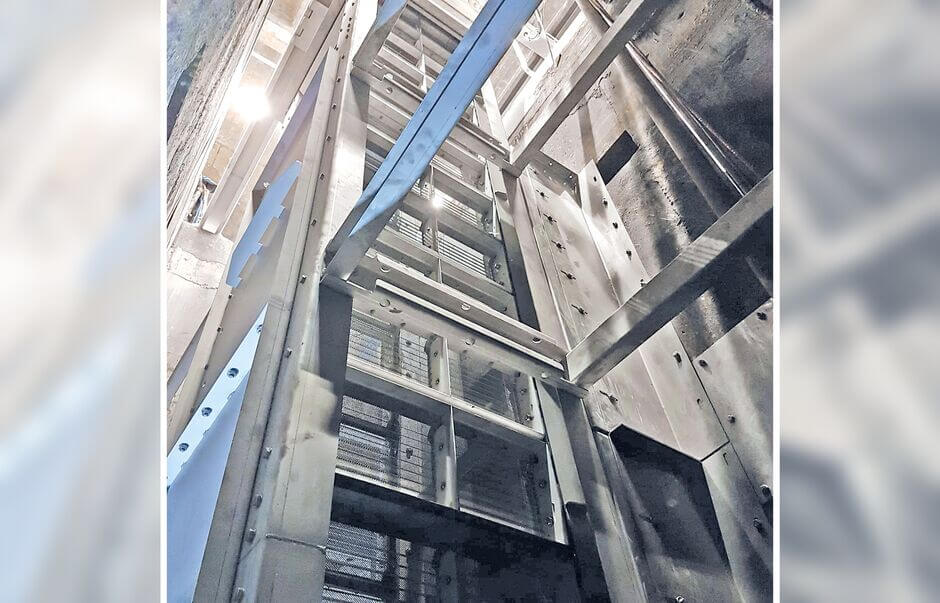

CenterMax® Star - folded perforated plate screen

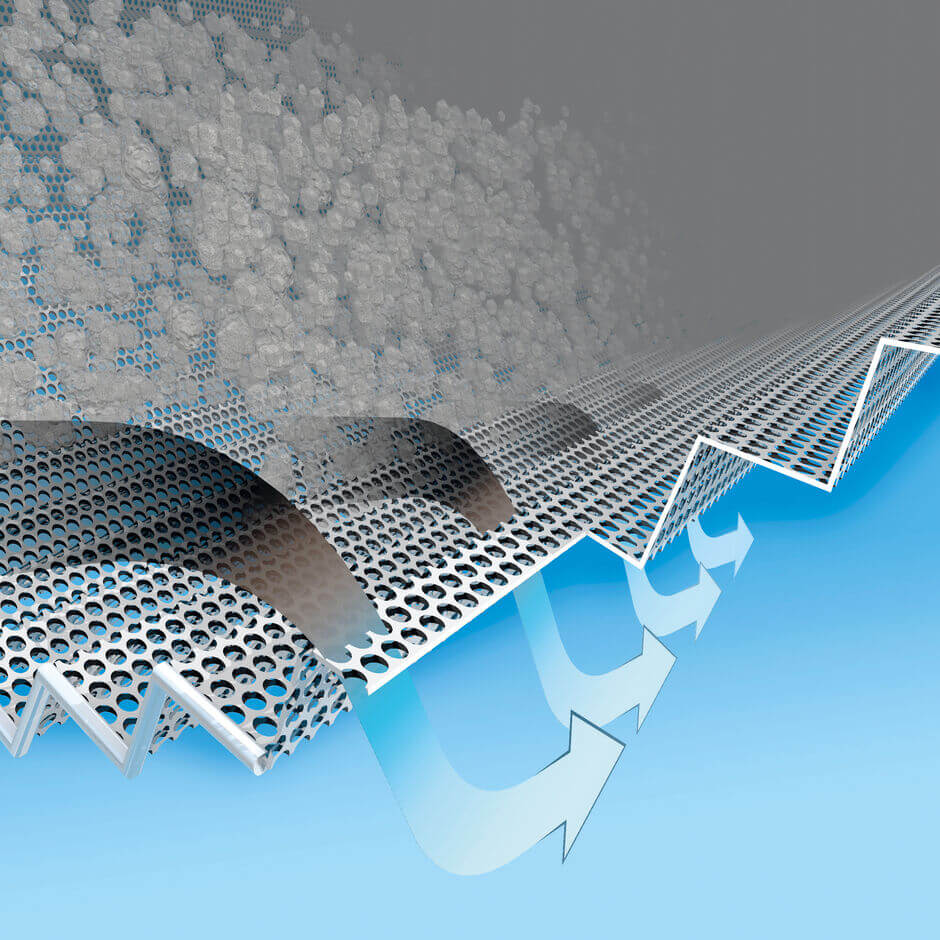

HUBER Band Screen CenterMax® with folded perforated plate, perforations 1 / 1.5 / 2 mm.
Increased screen surface for higher throughputs.
High separation efficiency and retention of fibres and hair.
Typical applications:
- Protection of membrane filtration plants
CenterMax® mesh - square mesh screen
HUBER Band Screen CenterMax® with mesh, mesh sizes from 0.2 up to 0.75 mm.
Maximum separation efficiency and reduction of COD and BOD by 20 – 40%.
Typical applications:
- Load reduction in the preliminary treatment stage
- Replacement for primary settlement tank
- River and sea outfall applications
The applications at a glance
- Industrial and municipal applications
- Primary and secondary treatment stage

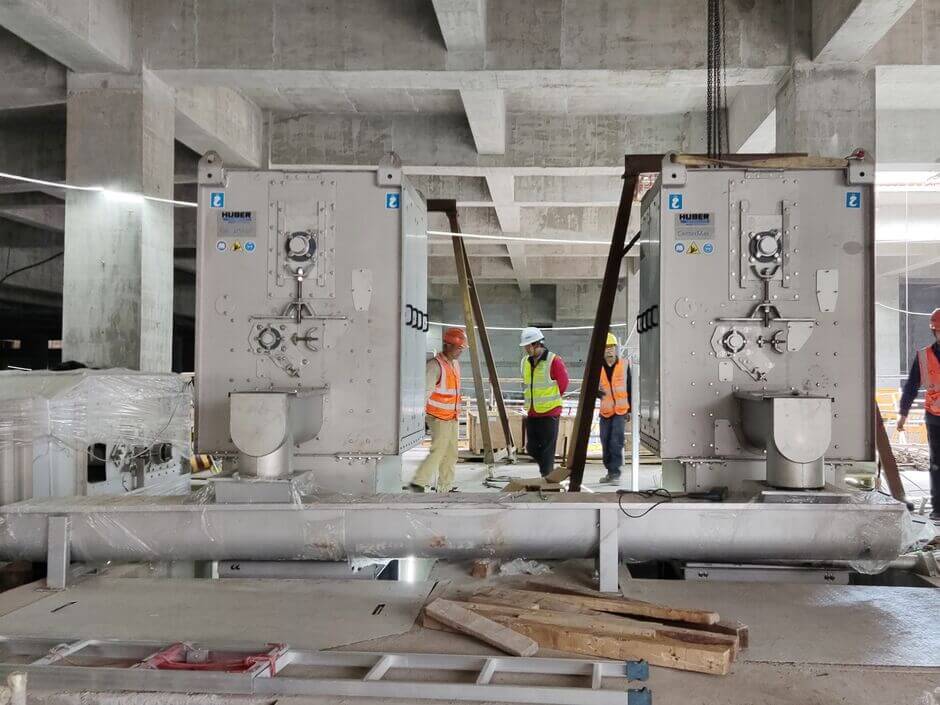

- Protection of membrane plants
- Screening in the inlet to power plants
- Treatment of cooling water circuits
- Ultra-fine screen for the reduction of COD / AFS in existing plants (load reduction in the biosystem)
- Surface and river water screening
The Benefits of HUBER Band Screen CenterMax®
- High throughput capacity – maximum separation efficiency
- Also suitable for narrow channels
- Economically dimensioned channel and machine
- Low life-cycle costs
- Easy maintenance and operation
- Maximum corrosion protection through stainless steel design and acid treatment in a pickling bath
