Casement window, swivel window, ready for installation
Made from two-sheet special 1.4301 (AISI 304) stainless steel profile with intermediate special plastic core to prevent thermal conduction, thermally insulated according to EN 10077, Uf = 2.70 W/(m²*K), fittings specially E-Look galvanized, stainless steel handle set.
Blind frame, circumferential, made from special profile, designed for dowelling into window soffit, including fixing material.
Sash frame, made from Z-profile, integrated fittings. Multiple locking via handle set. Two rebate gaskets. Glazing bead invisibly fastened.
Machine ground surface finish. Dry glazing with insulation glass, without KTW approval.
Door opening options:
- Hinges on left
- Hinges on right

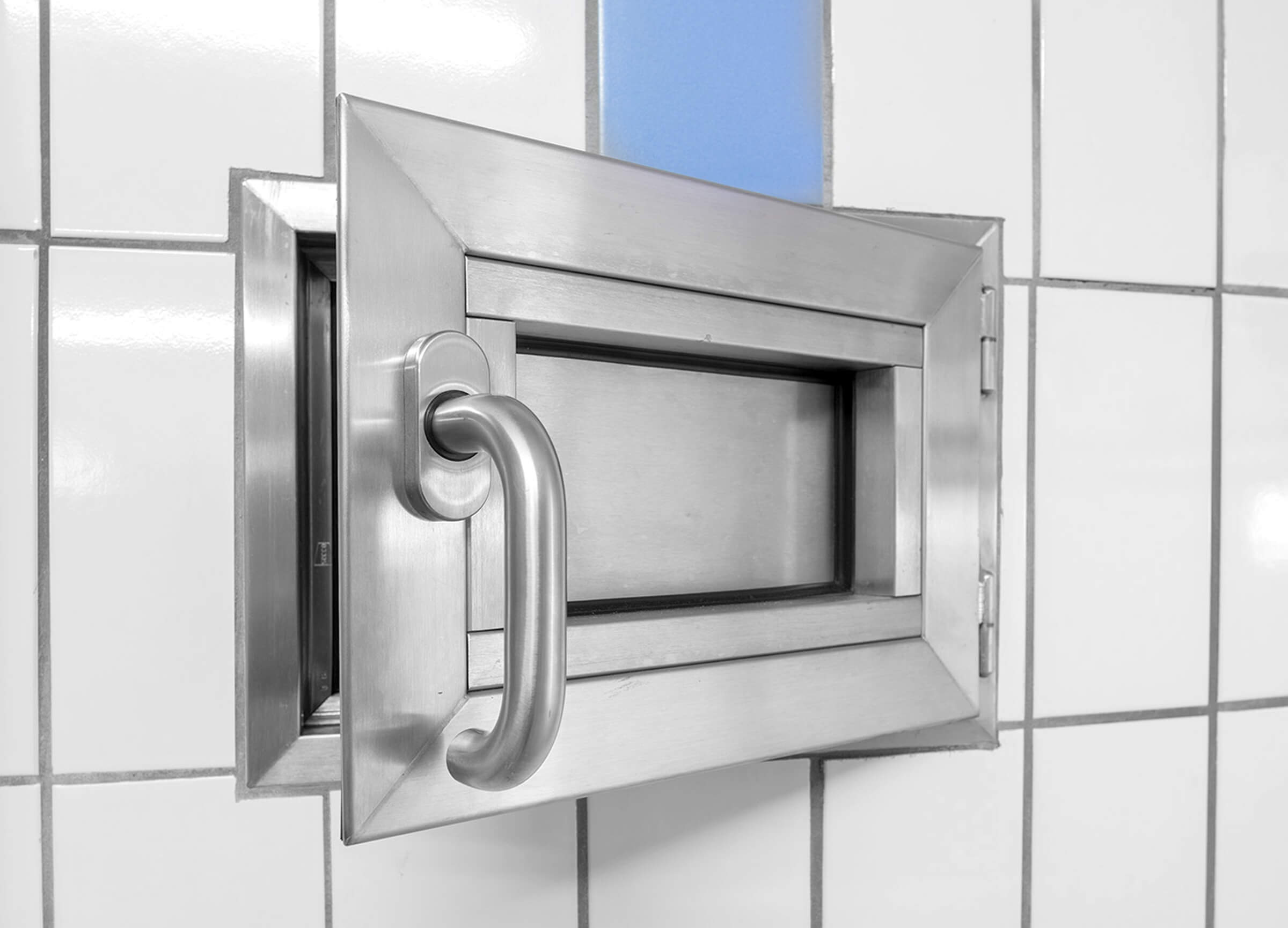

HUBER swivel window with thermo glass and reversible frame F3
Options
- 1.4404 (AISI 316 L) stainless steel
- Secure to prevent forced access according to DIN EN 1627, RC3, galvanized fittings, only possible with wet glazing
- Special glazing (e.g. security glass)
- Multi-wing window
- Outside window sill made from stainless steel
- Water chamber window (with drain holes towards the dry side, with wet glazing, KTW approved)
- Lockable handle set provided for profile cylinder
- Other designs available on request
