HUBER Closed Tube Screw Conveyor Ro8 Transport of coarse, fine and compacted screenings, sludge, grit, and solids
- HUBER Screw Conveyor in a closed tube
- Transport of coarse, fine and compacted screenings, sludge, grit, and solids from industrial processes
- Customized designed for horizontal, inclined and even vertical transport

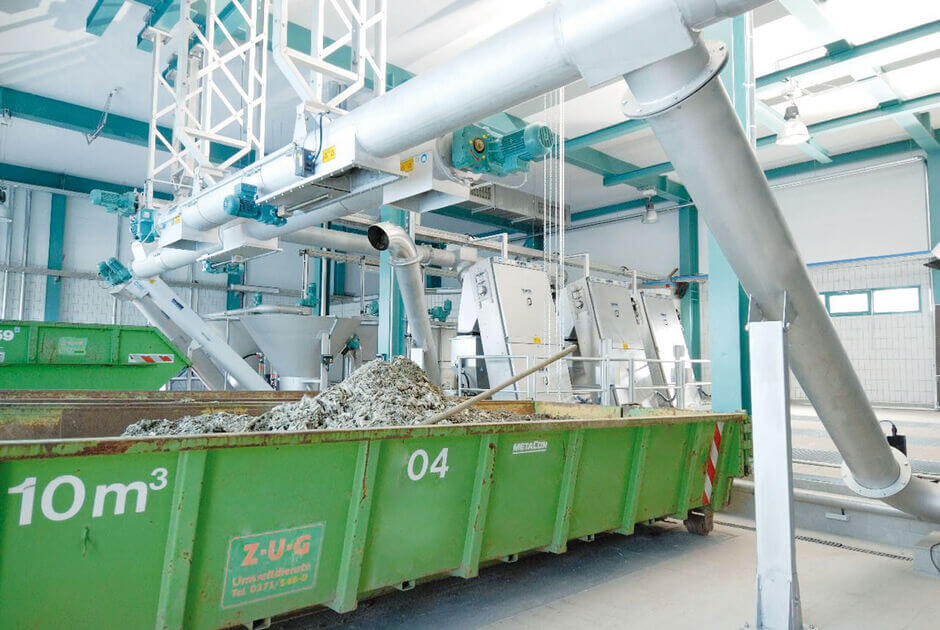

The HUBER Screw Conveyors are installed for horizontal, inclined and even vertical transport of screenings, dewatered sludge, grit etc. from wastewater treatment plants, or other solids from industrial processes.
Gentle movement in an enclosed pipe prevents odor nuisance and dust development.
Design and Function
The HUBER Screw Conveyors are custom made for the individual product to be conveyed and designed and manufactured with state-of-the-art techniques. Due to their special design principle the conveyors can be equipped with either a push or pull drive and feed hoppers or discharges can be added if required. Direct screenings transfer from one to the other screw conveyor is no problem.

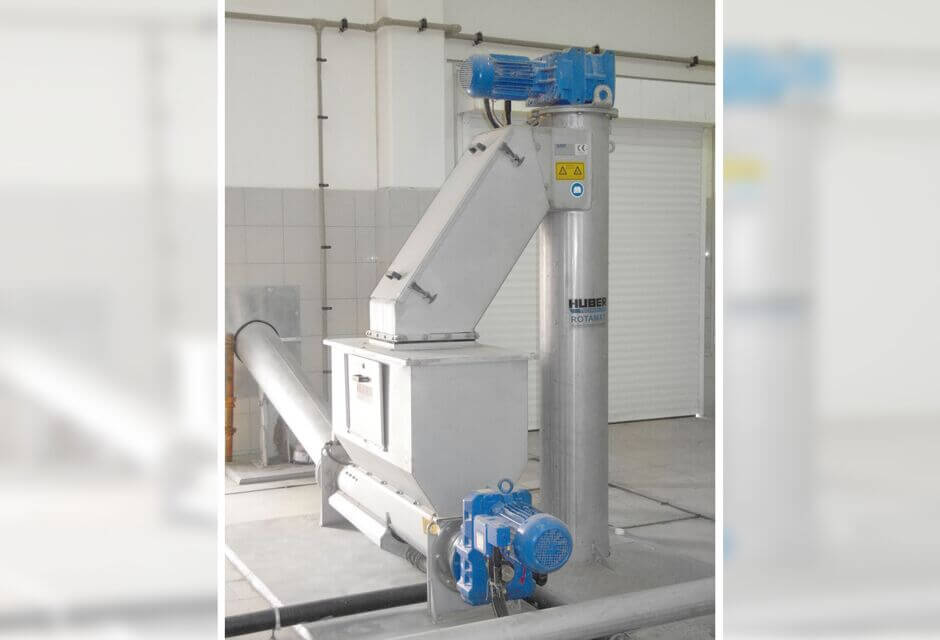

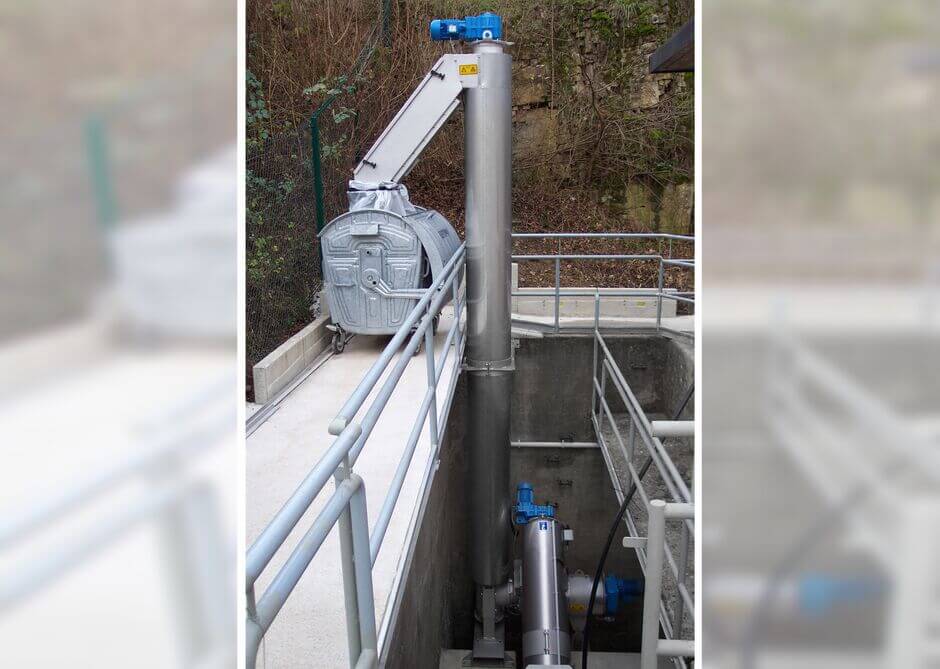

The closed tube version HUBER Screw Conveyor Ro8 with guide bars can be installed at an angle of up to 90° depending on the individual product to be conveyed. As an option, depending on the individual installation situation, several units can discharge into one screw conveyor as the screw shaft is supported on both ends. The motor and screw design are adaptable to specific customer requirements. Screw lengths up to 15 m for a throughput of 1 – 12 m³/h are no problem.
The Benefits of the HUBER Closed Tube Screw Conveyor Ro8
- Installation angle
Depending on application and layout, an installation angle up to 90° can be realised. - Completely made of stainless steel
The machine is completely made of stainless steel and pickled in an acid bath which eliminates corrosion and thus reduces maintenance. - Enclosed system
Gentle movement in an enclosed pipe prevents odor nuisance and dust development.
- Outdoor installation
For outdoor installations, the HUBER Screw Conveyor Ro8 can be supplied with a frost protection, combined with an additional insulation if required. - Low maintenance
No lubrication. Regular checking and visual inspection are sufficient.
