HUBER Bogenpress B-PRESS High-performance belt filter press for municipal and industrial sludge
- Belt filter press for municipal and industrial sludge
- High-performance belt filter press for best dewatering results
- Combi-unit: thickening and dewatering in one working process
- Feed capacity up to 1000 kgDR/h
- Three sizes available
- Versatile sludge press
- High efficiency (low polymer and power consumption)
- High capacity (due to extended predewatering zone)
- Application-optimized design
- Can be combined with the HUBER Belt Thickener DrainBelt unit to further increase capacity
The Machines – Design and Function

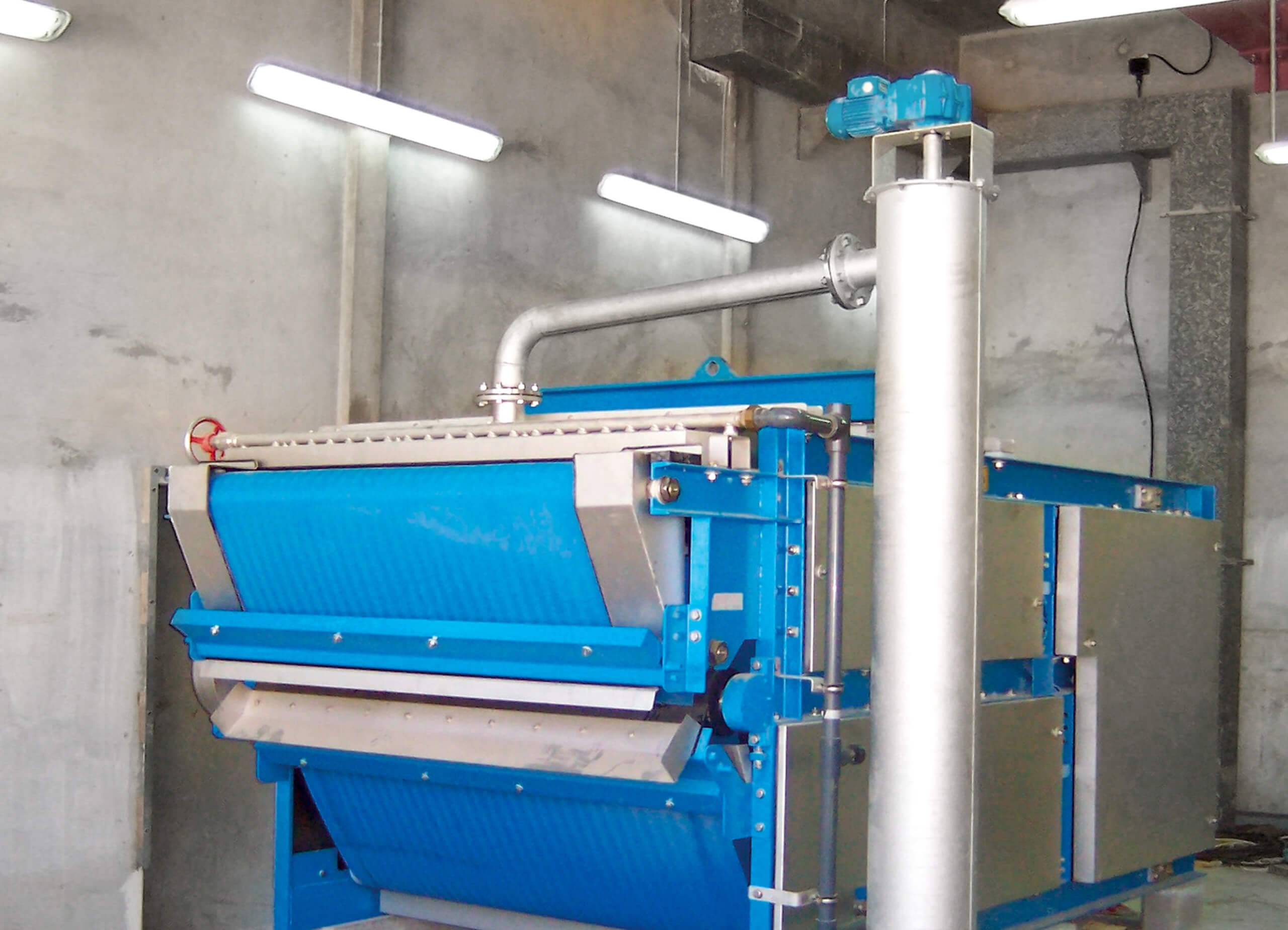

HUBER Bogenpress B-PRESS
A new, extended high-performance pre-dewatering zone with chicanes, the bow zone, plus two perforated dewatering rolls ensure optimal pre-treatment and compaction of the flocculated sludge so that it can be exposed to maximum pressure in the following high pressure zone which is equipped with press rolls decreasing in diameter (4, 6, 8, or 10 rolls). This process guarantees highest dewatering results. The machine is equipped with detachable covers to provide easy access to moving machine parts.

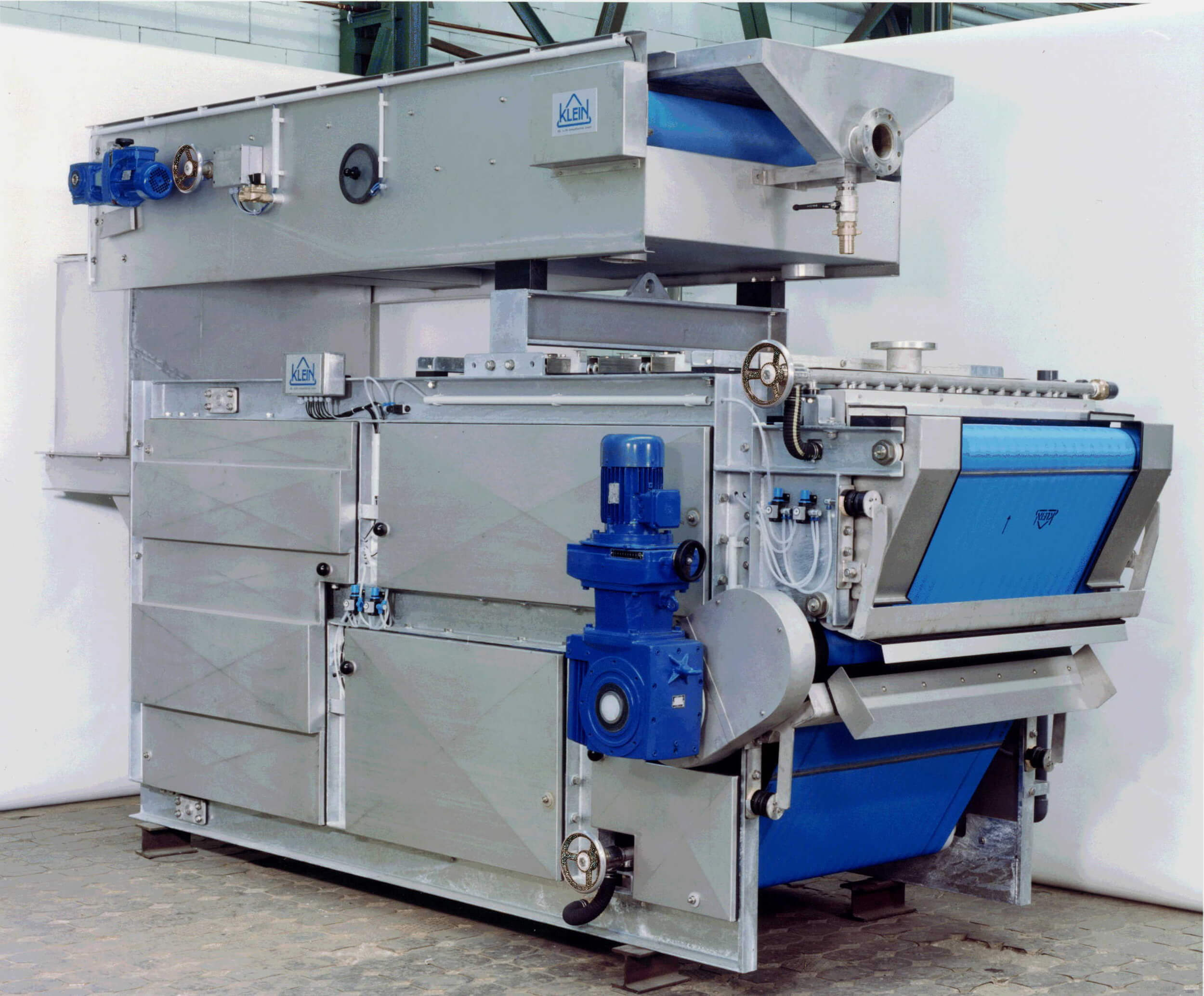

HUBER Bogenpress B-PRESS BS Combi
The BS Combi version has a belt thickener (HUBER Belt Thickener DrainBelt) mounted on the actual Bogenpress. The sludge is at first pre-thickened on the belt thickener prior to passing through the dewatering zones of the Bogenpress. The combination system is able to handle up to 80 m³/h. Another advantage of the system is that coagulant agent addition is required only once for both the thickening and dewatering process.
