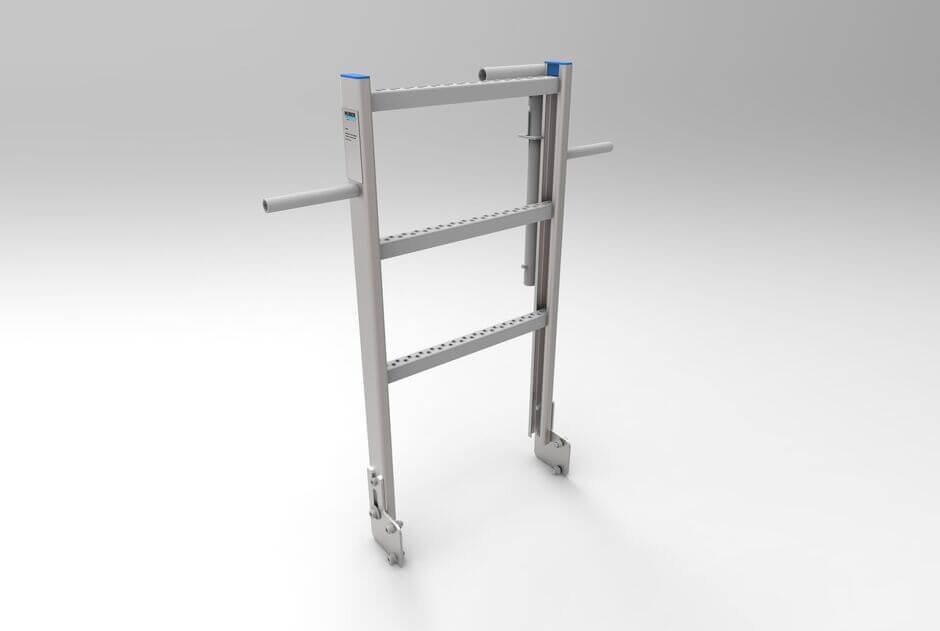

Fold-back entrance aid – collapsible hand post EH KV

Fold-back, extensible entrance aid, with design certification in accordance with DIN 19572

Made of 1.4307 (AISI 304 L) stainless steel, for safety access ladders with 300 mm, 400 mm, 500 mm width.

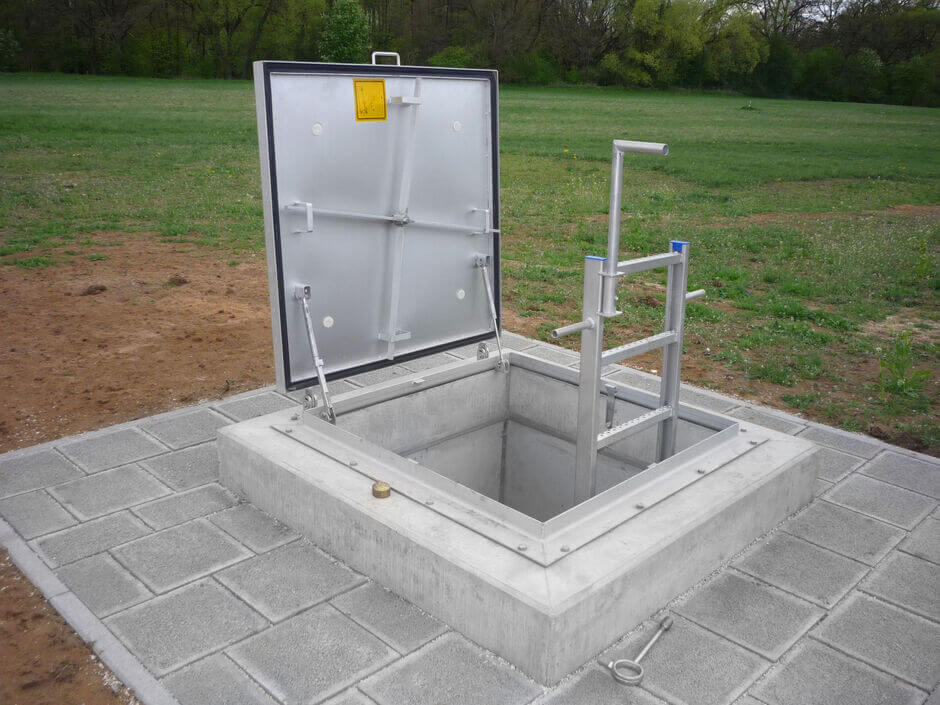

The fold-back, collapsible entrance aid EH KV is folded vertically upwards and extended when in use. As it is extensible, it is easy to operate and very convenient to use for the operating personnel.

After use, the EH KV entrance aid is retracted and folded over the manhole opening and can thus remain in the manhole.

Access ladders must have a handhold at their exit. This requirement is deemed to be fulfilled if one or both handles of a ladder project at least 1.1 m beyond the exit height.

Completely shielded arc welded, acid-treated in a pickling bath and passivated.

Optionally available in:

• 1.4404 (AISI 316 L) stainless steel
