Treatment of Grit from Sewers and Road Sweepings

Process Technology

Sustainable processing and recycling of mineral waste

Mineral-rich wastes such as street sweepings, sludge from sewer flushing and cleaning of stormwater tanks and gullies, and grit trap material contain not only grit and gravel but also trash (e.g. packaging material), coarse materials (e.g. stones, wood, glass, metal parts) and organic materials (e.g. soil, leaves, grass, fruit stones and cereal grains).

For the processing and treatment of such mineral wastes HUBER offers individually designed grit treatment processes.

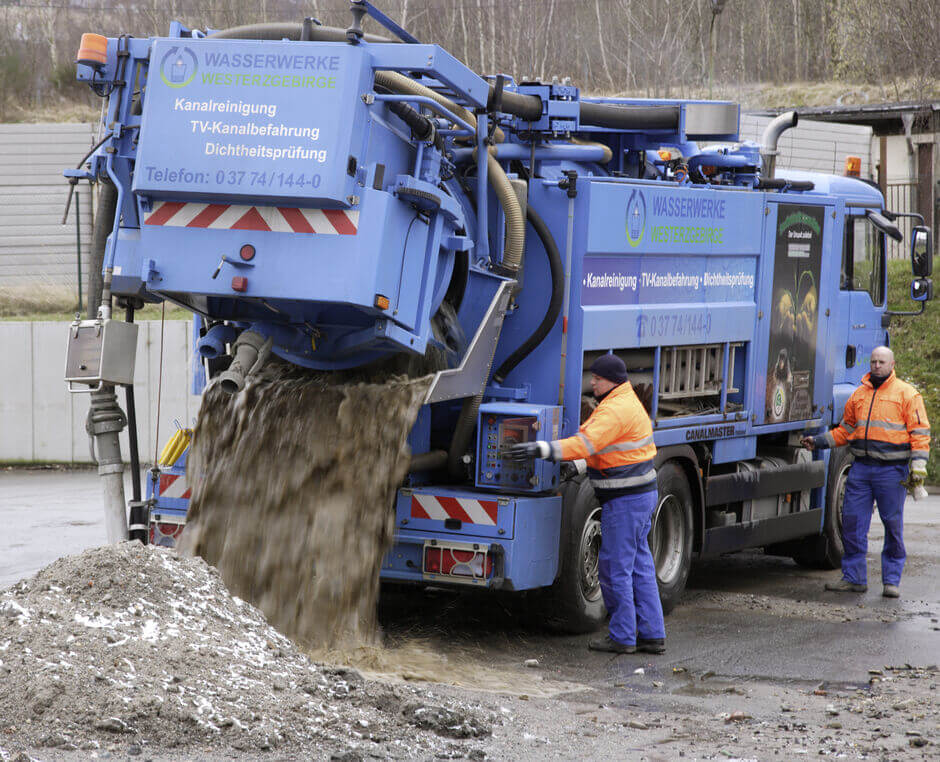

Sustainable processing and recycling of mineral waste from from sewers and road sweepings

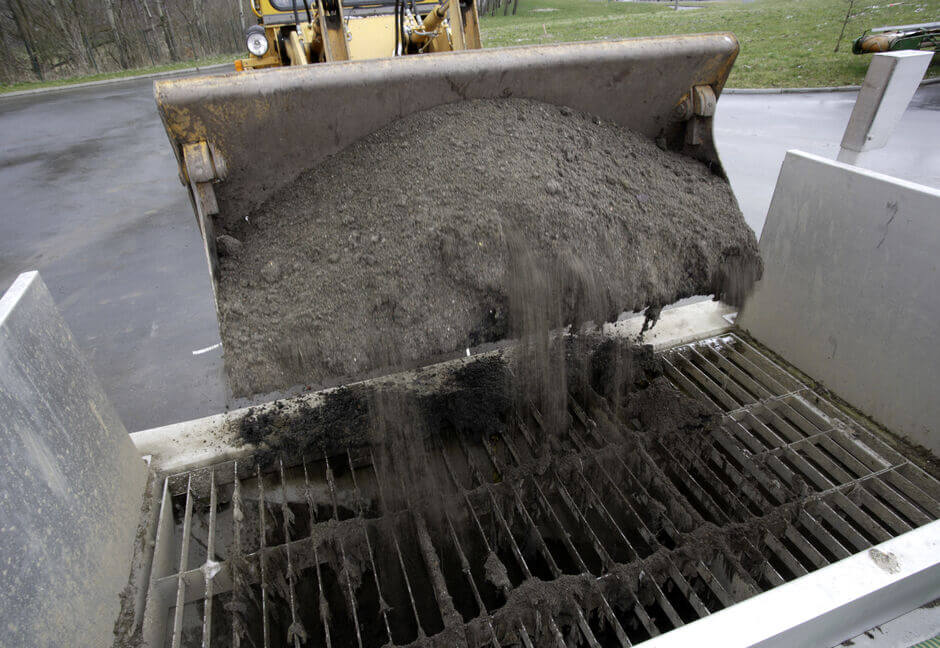

Wheel loader fills the feed hopper with raw material.

The material is conveyed to the sand processing plant from the underground feed bunker.

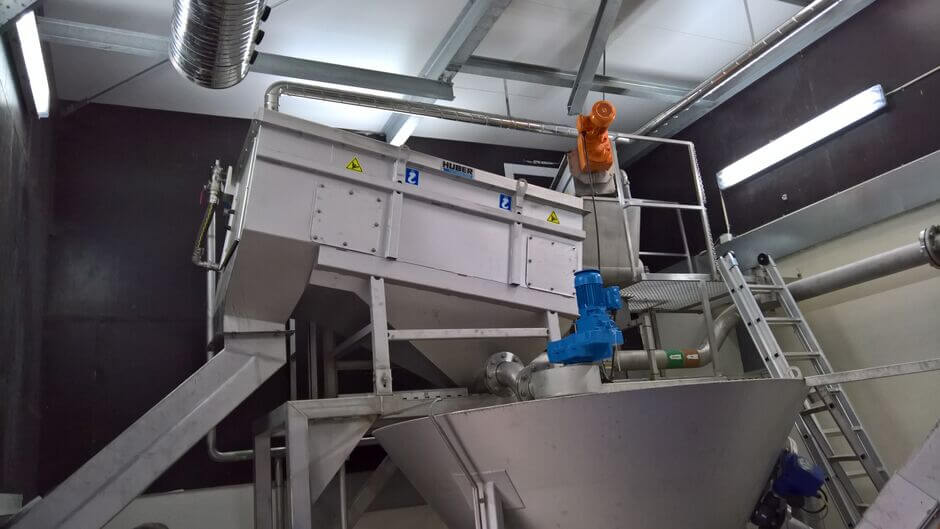

HUBER Washing Drum for coarse material removal in a grit treatment plant

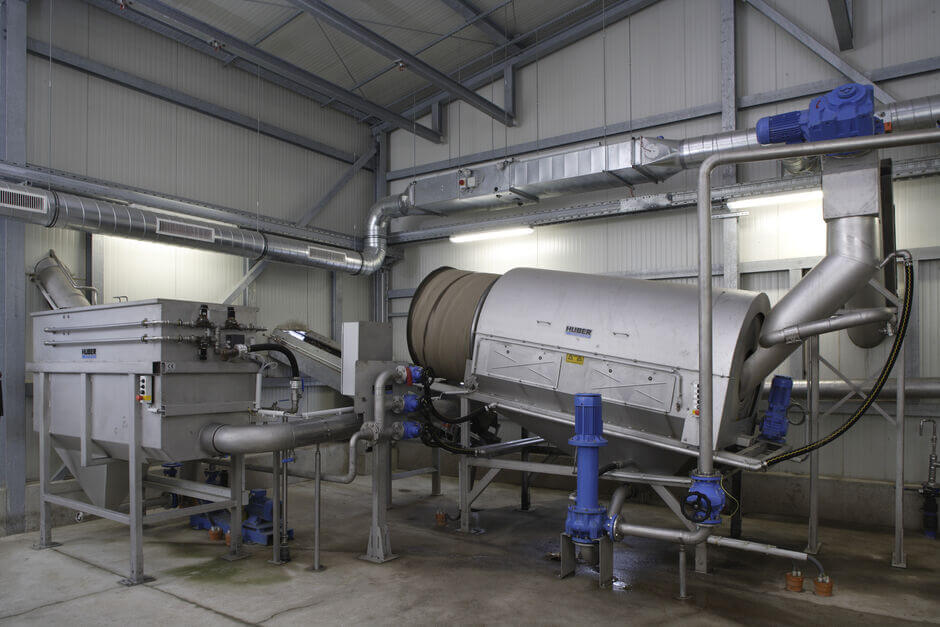

The HUBER Wash Drum RoSF9 (right in picture) for coarse material separation and the HUBER Screen ROTAMAT Ro2 (left in picture) for wash water treatment.

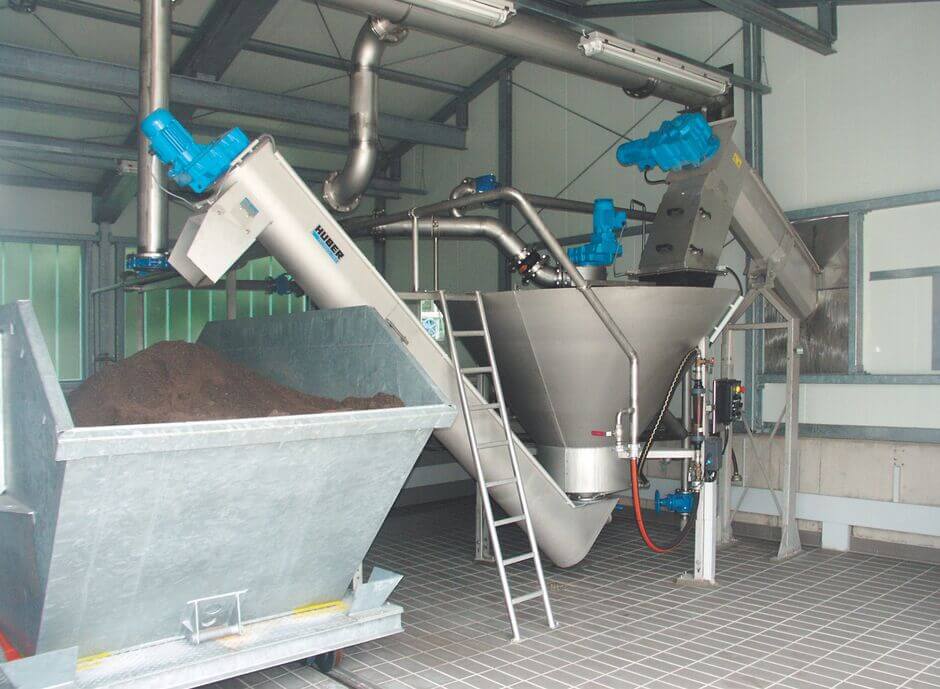

The HUBER Grit Washer RoSF4 as the heart of grit preparation reduces the organic content in grit to < 3%.

Coarse material > 10 mm screened and washed out by the HUBER washing drum RoSF9.

Screened and compacted organic solids (> 1 mm) with DR > 30 % by the HUBER Rotary Drum Fine Screen ROTAMAT® Ro2 .

Complete HUBER Treatment Plant RoSF5.

1/9

Process

Process technology according to requirements

Depending on the required processing capacity, the composition of the input material to be treated as well as the requirements on the output material and other general conditions, different process engineering concepts are necessary.

The main process stages of grit treatment are:

HUBER Grit Acceptance System RoSF7

Receiving and intermediate storage tank for the material delivered and to be processed (e.g. sewer grit, road sweepings).

HUBER Wash Drum RoSF9

The wash drum is used to separate all coarse material and foreign matter that would make further treatment difficult.

HUBER Coanda Grit Washer RoSF4

The grit washer separates organic matter from the mineral fraction and produces clean grit with an organic content < 3%.

Wash water treatment

If the wash water required for grit processing is not provided externally, the grit processing plant can also be supplemented with a wash water treatment system. The required water is then purified and can be reused (water cycle).

On the basis of its wealth of experience in developing complete grit treatment systems, HUBER is able to provide a tailored concept for each individual grit treatment project.
